Magnetic TYPE
External Antennas > Magnetic TYPE
TE-WDM-258MG WIFI DUAL 덧글 0 | 조회 115 | 2020-08-13 11:21:17
관리자

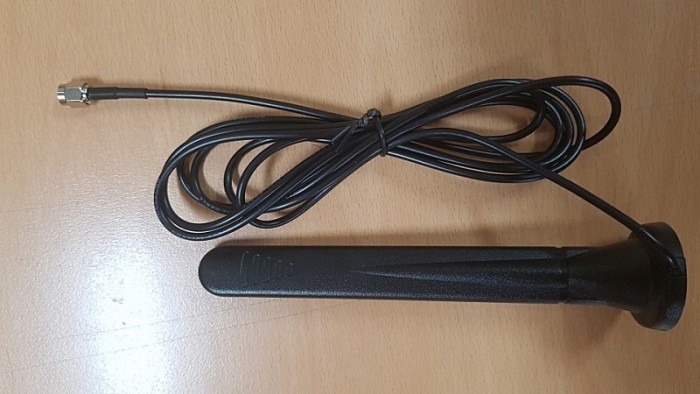

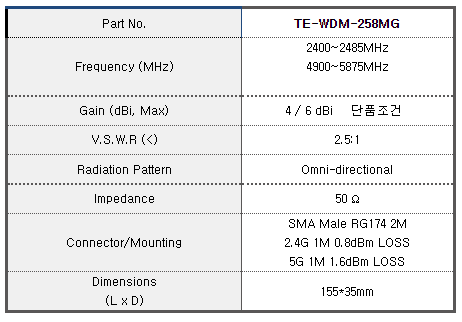

Part No.

TE-WDM-258MG

Frequency (MHz)

2400~2485MHz

4900~5875MHz



Gain (dBi, Max)

4 / 6 dBi   단품조건

V.S.W.R (<)

2.5:1

Radiation Pattern

Omni-directional

Impedance

50 Ω

Connector/Mounting

SMA Male RG174 2M

2.4G 1M 0.8dBm LOSS

5G 1M 1.6dBm LOSS

Dimensions

(L x D)

155*35mm
